RE series electric trolley configuration

This type of configuration is used when the need for the maximum available height between the ground and the beam must be combined with the need to move the load also laterally, changing the starting position. In this case the translation takes place very precisely thanks to the activation of an electric motor.

Schema confronto paranco normale e ribassato
1 • More installation space  |  2 • Normal size  |   3 • Lower headroom
Paranco Serie W Ribassati 1

Technical specifications and dimensions W-RE • 125 kg >> 1000 kg

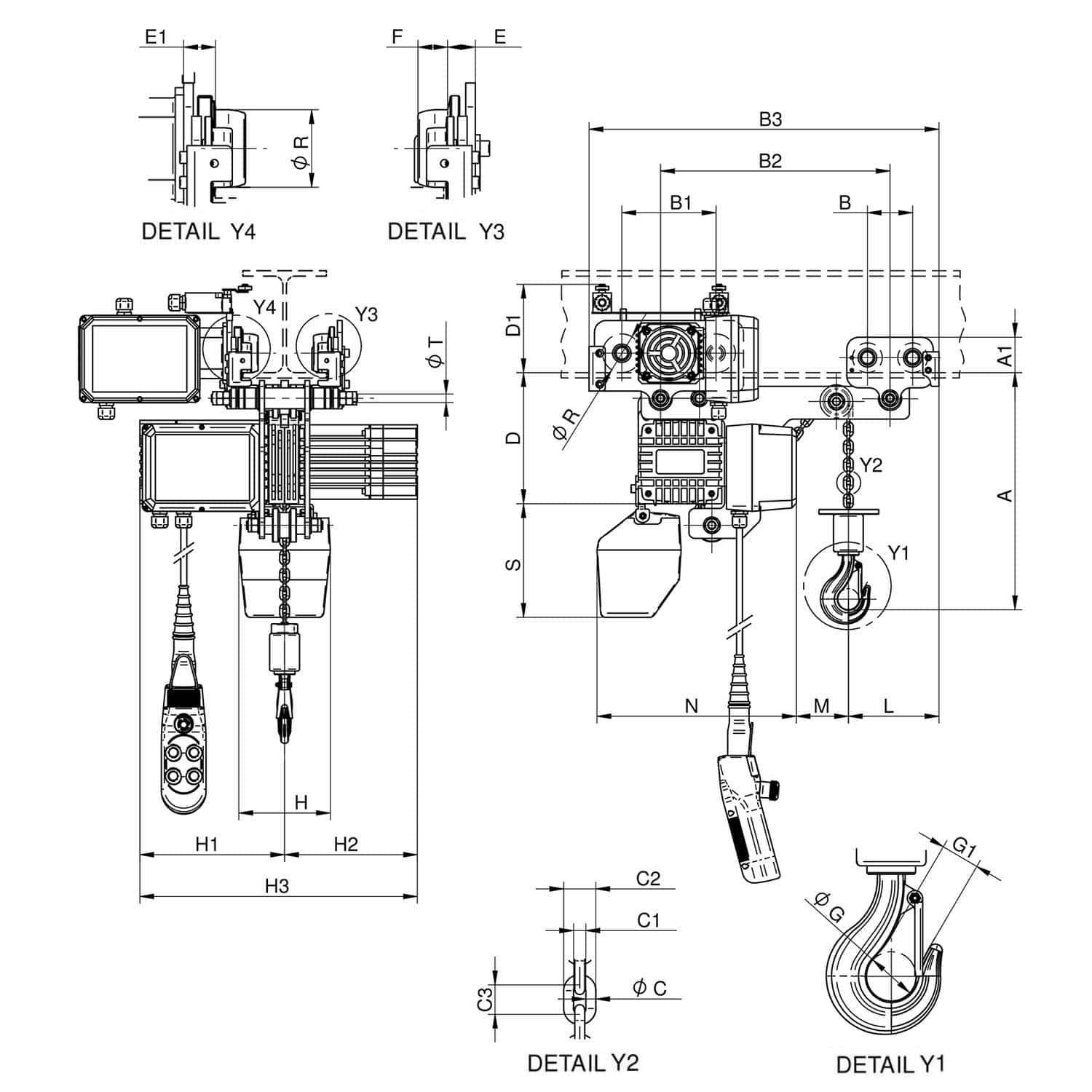

W500-RE draw

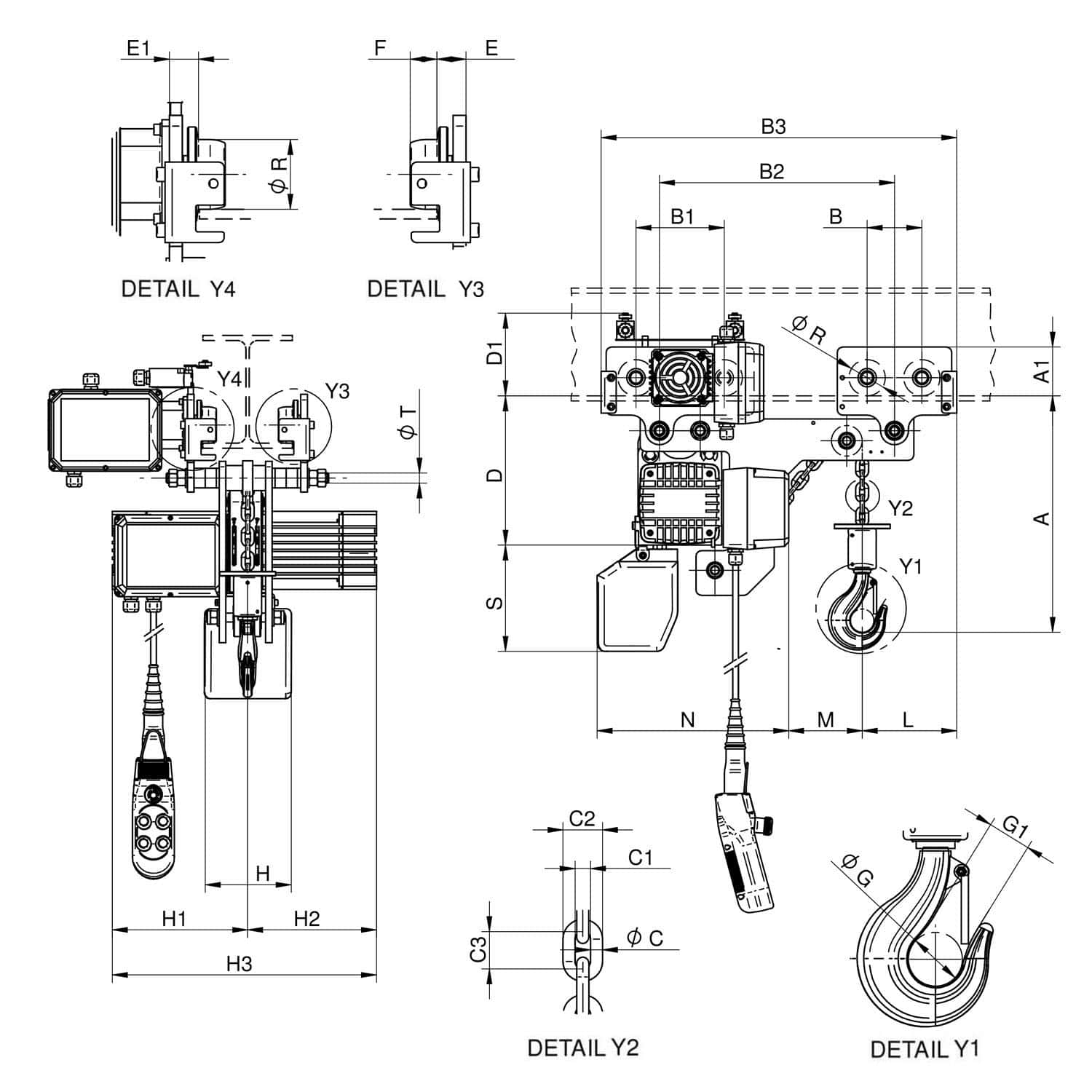

W1000 RE draw

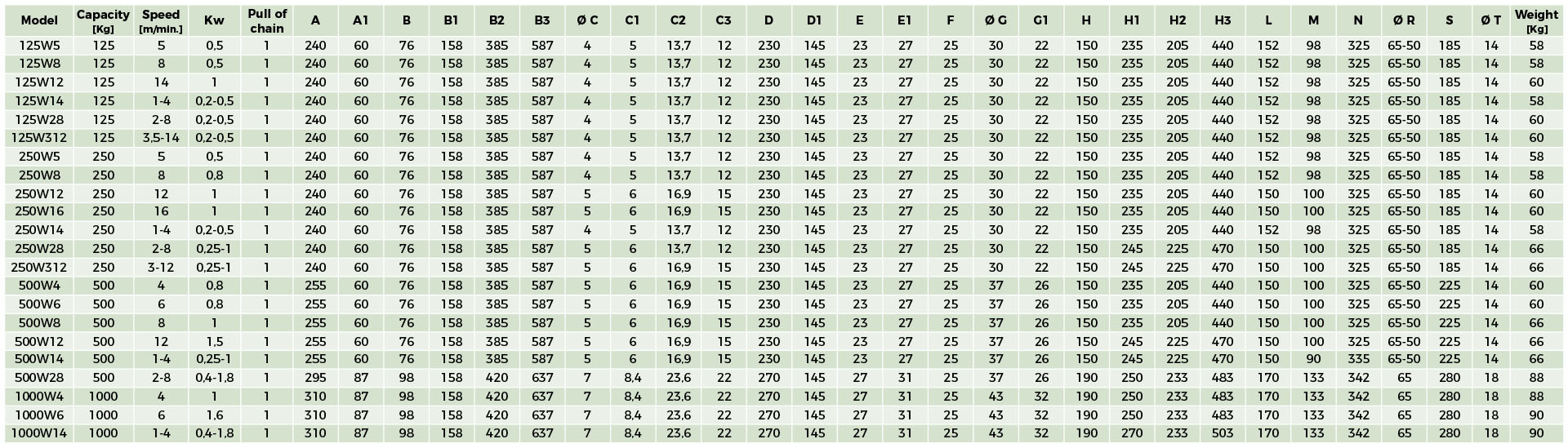

Technical Specifications W-RE ok

Technical specifications and dimensions WR-RE • 1000 kg >> 5000 kg

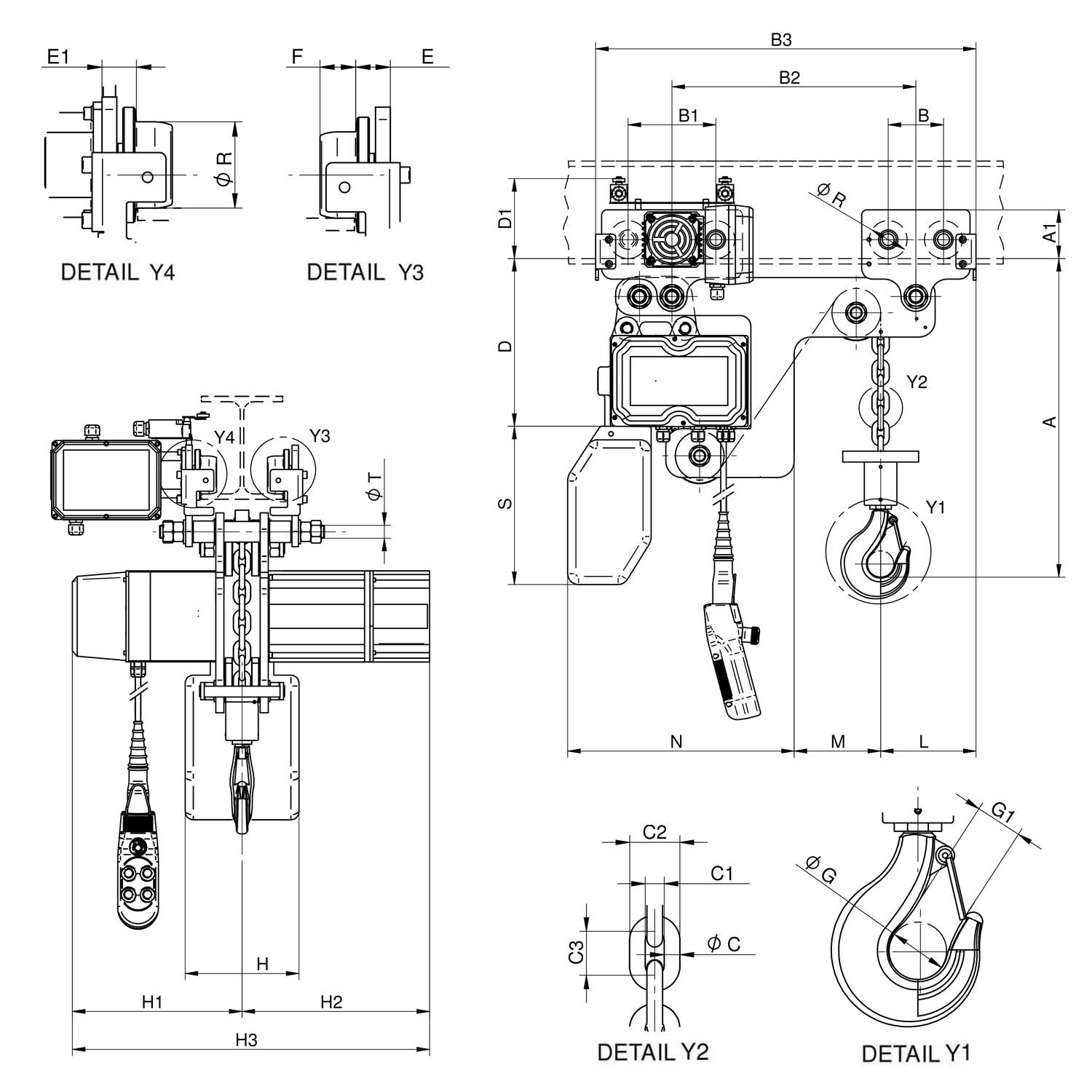

WR2000 RE draw

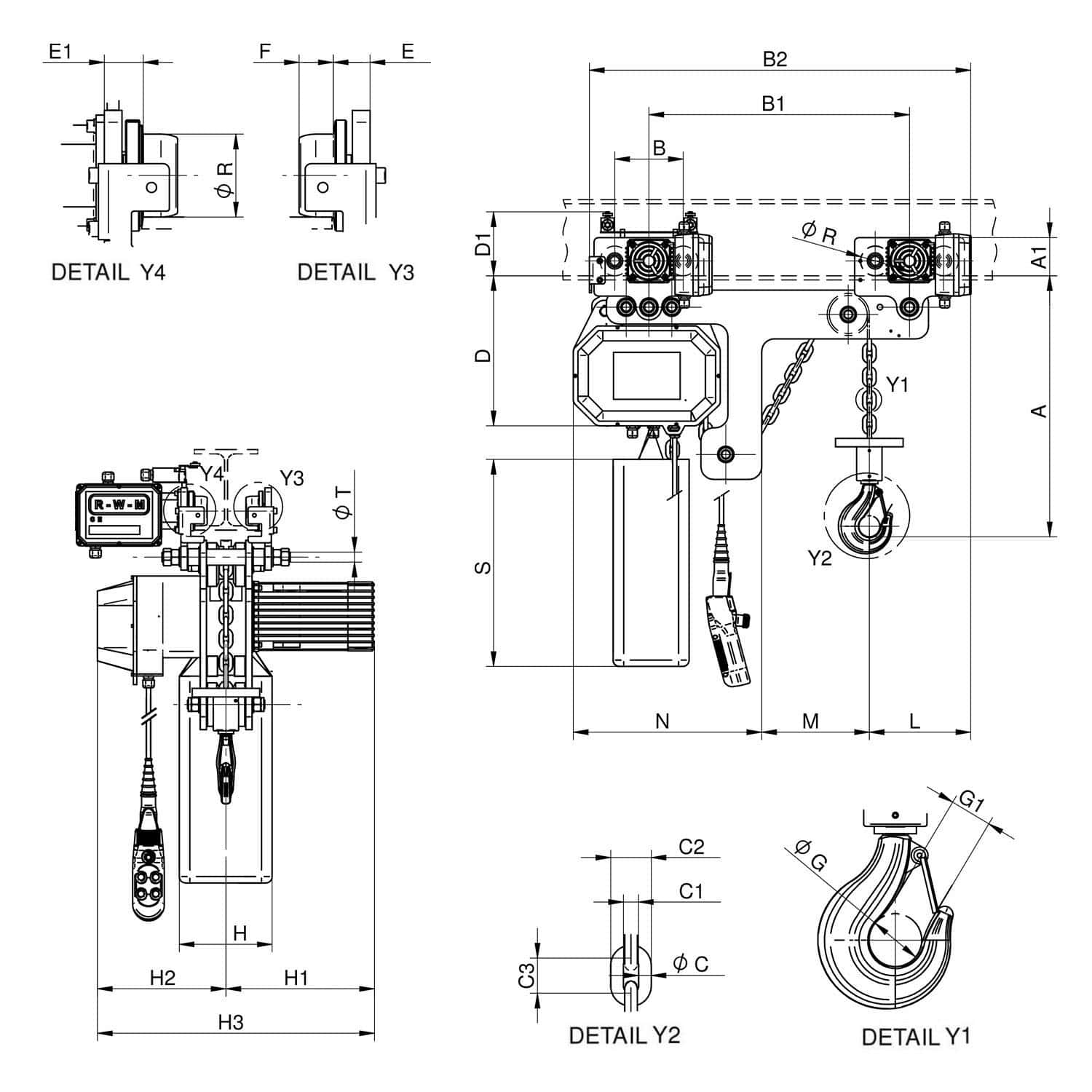

WR3000 T1 RE draw

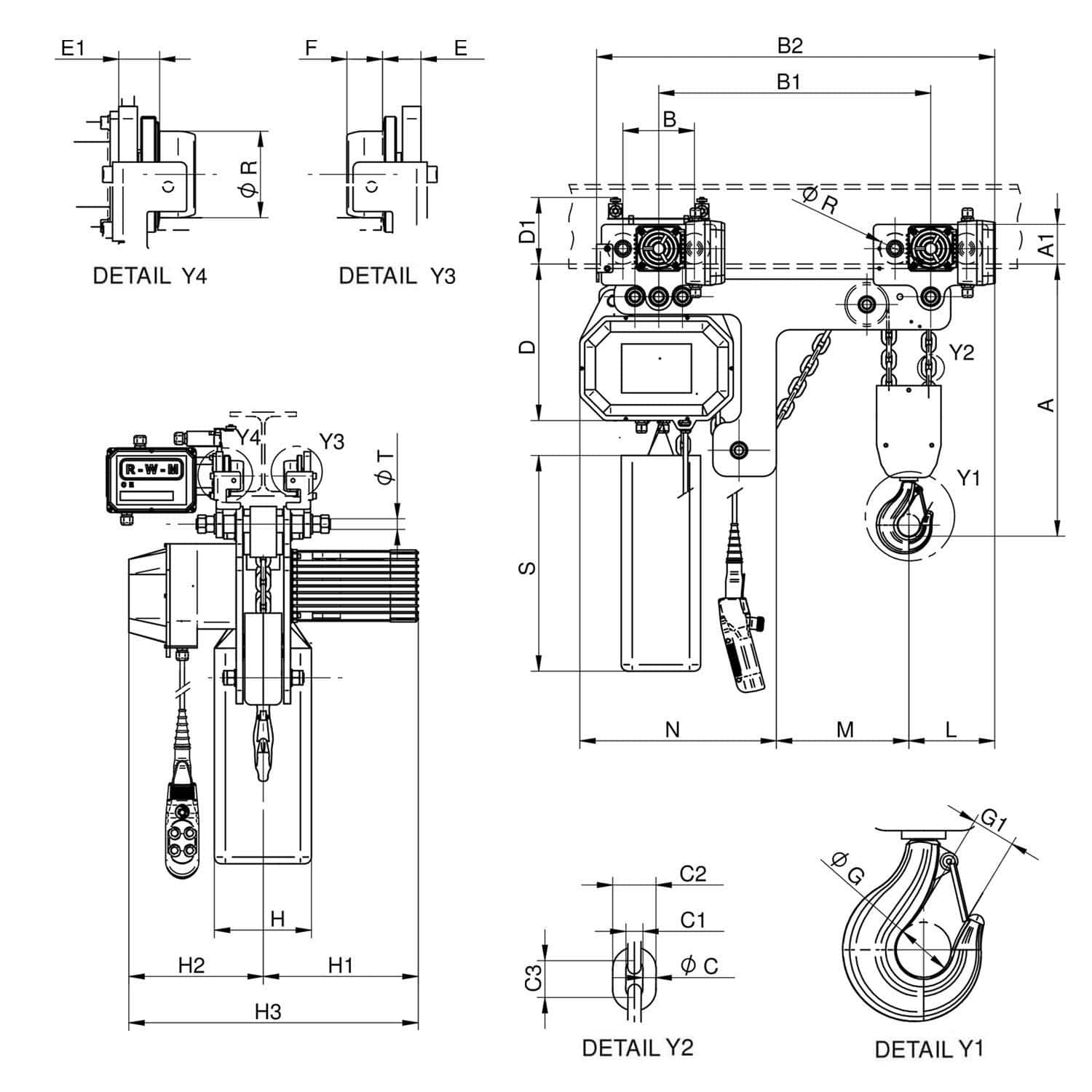

WR3000 T2 RE draw
File con spedifiche tecniche serie WR

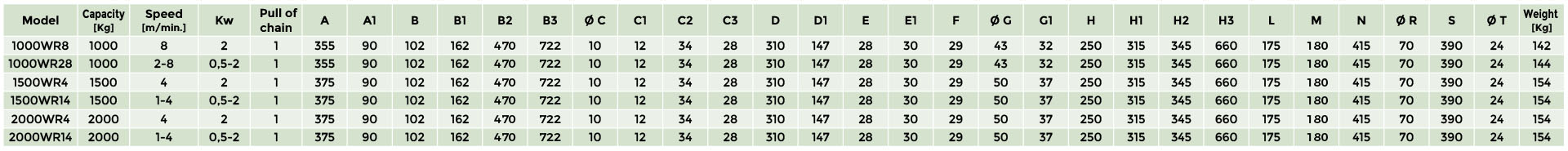

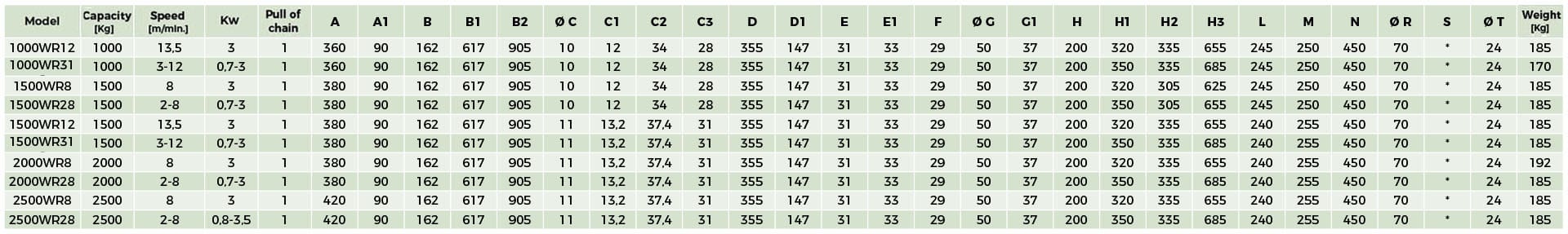

Technical Specifications WR 2000 RE 2

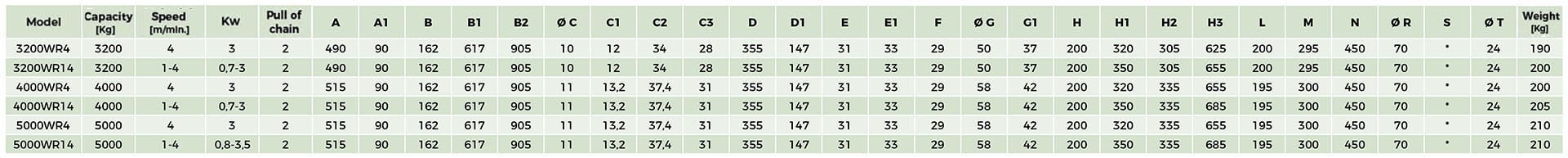

Technical Specifications WR 3000 RE
