W-CM mechanical trolley configuration

Paranco Serie W CM Configurazione carrello meccanico

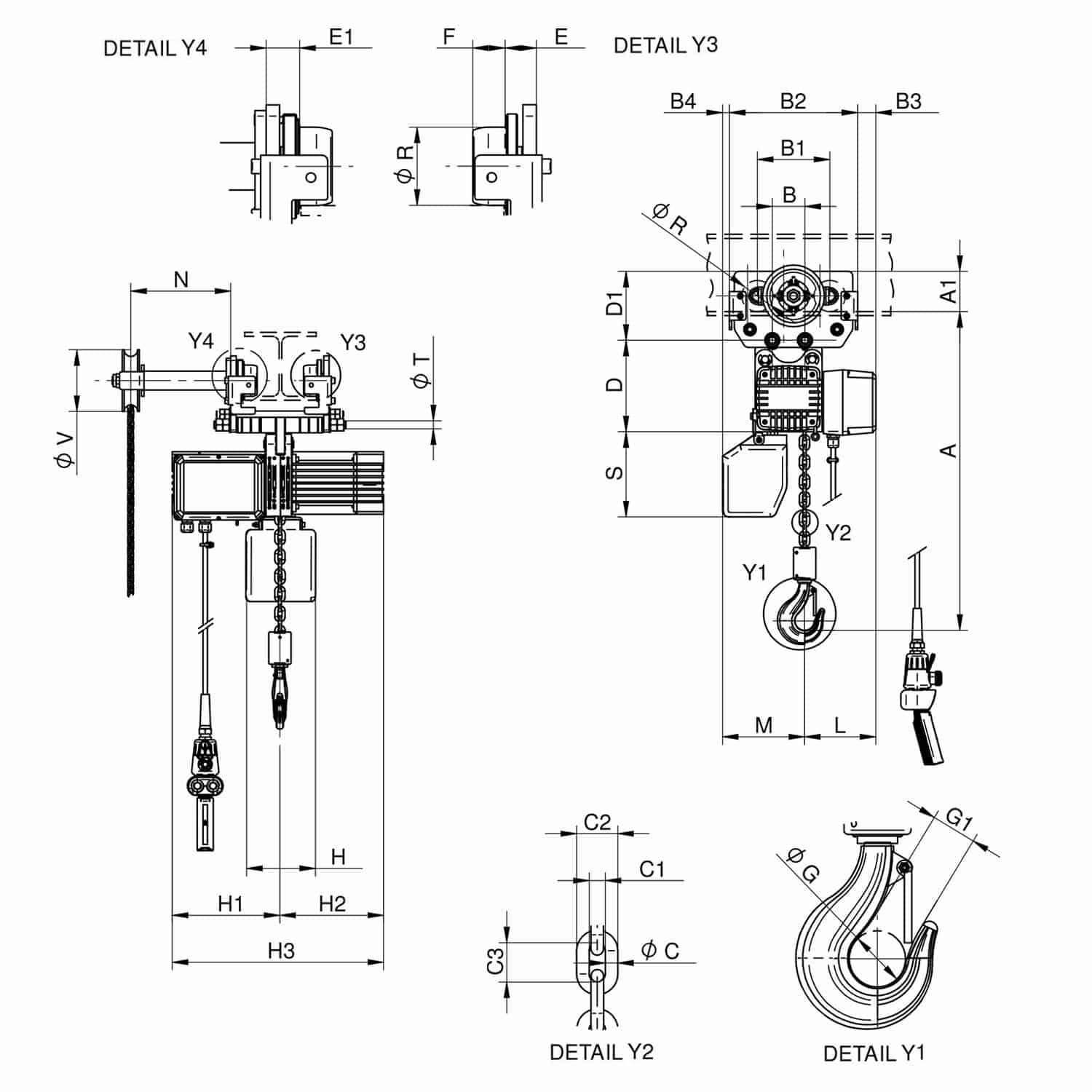

W1000 draw CM

This type of configuration is used when there is the need to lift a load and move it laterally, changing the starting position. In this case the translation takes place very precisely thanks to a maneuvering chain controlled by the operator.

The capacity ranges from 125 to 1000 kg with a single pull of chain.
from 125 to 1000 Kg

Technical specifications and dimensions

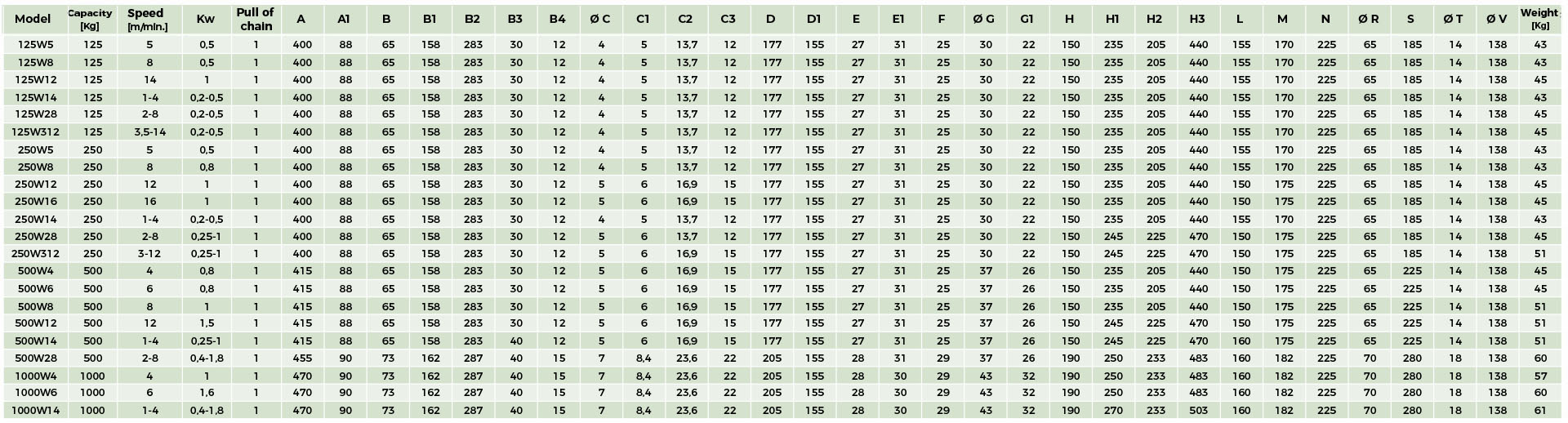

Technical Specifications W-CM
