Portfolios - W-CE electric trolley configuration

Portfolio Description

W-CE electric trolley configuration

Paranco Serie W CE Configurazione carrello elettrico

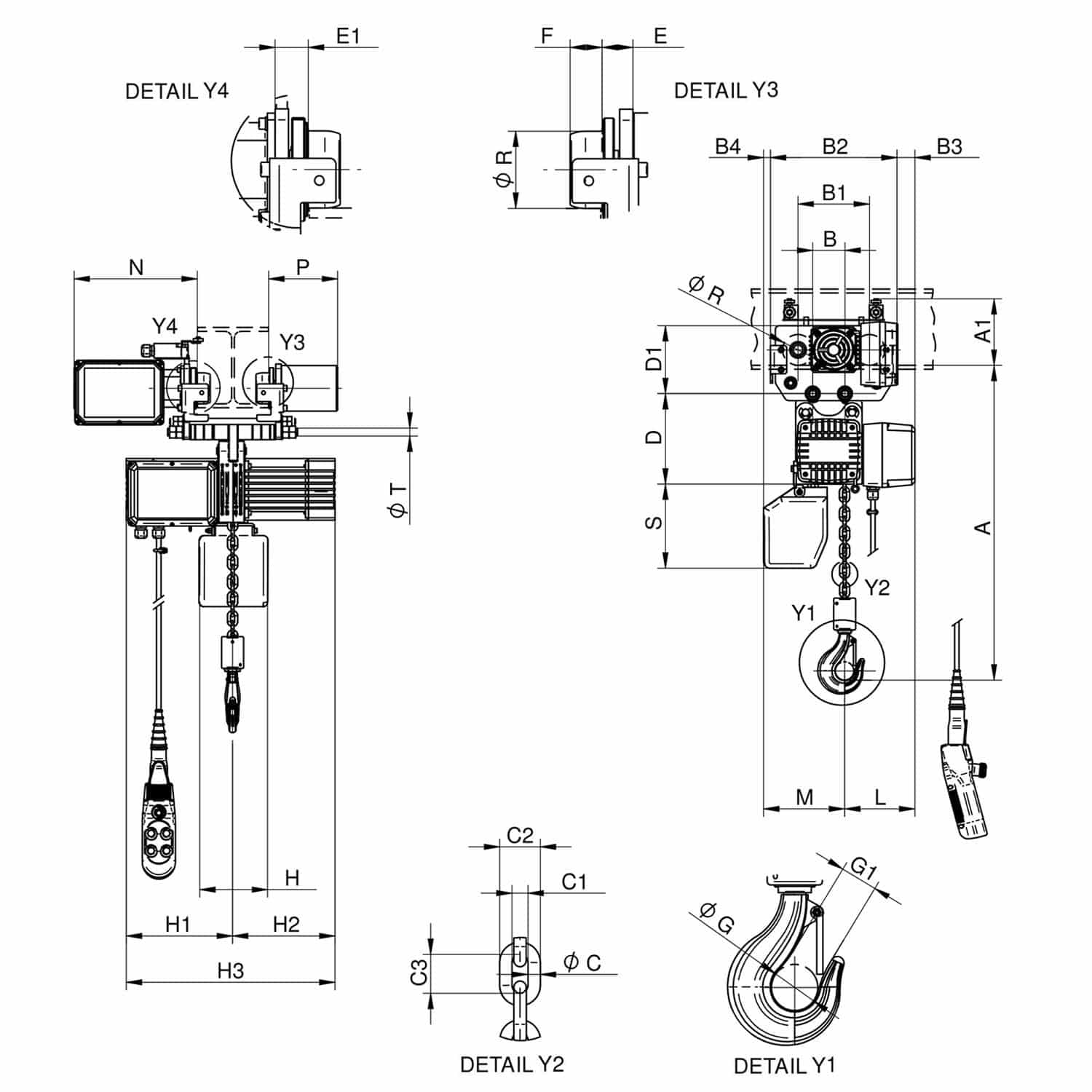

W1000 draw CE

This type of configuration is used when there is a need to lift a load and move it laterally, changing its starting position. In this case the translation takes place very precisely thanks to the activation of an electric motor.

The capacity ranges from 125 to 1000 kg with a single pull of chain.
from 125 to 1000 Kg

Technical specifications and dimensions

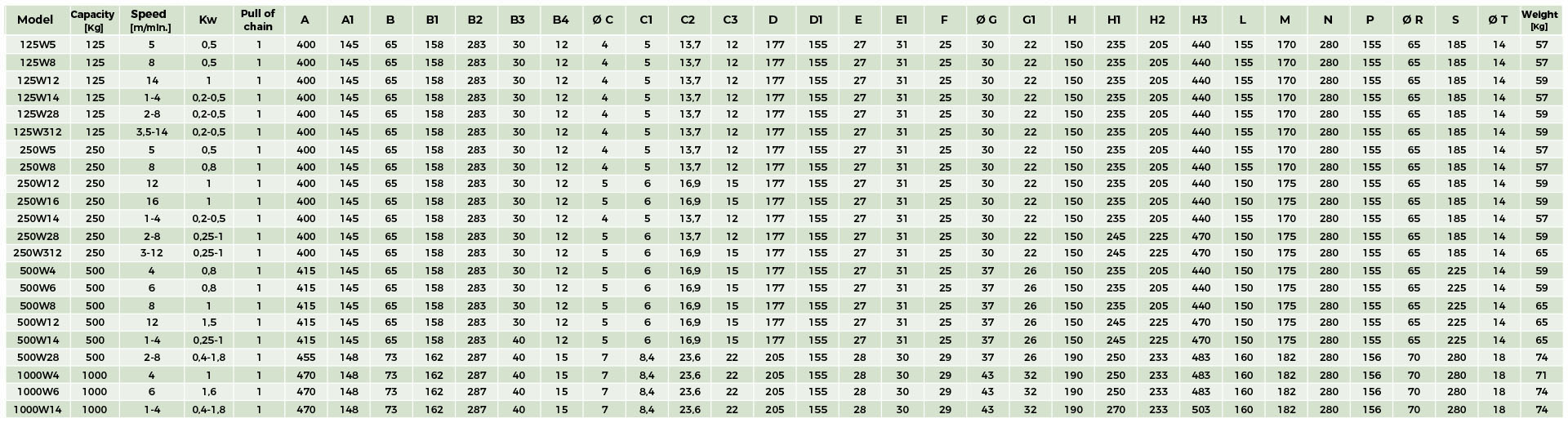

Technical Specifications W-CE
