Portfolios - W-CS push trolley configuration

Portfolio Description

W-CS push trolley configuration

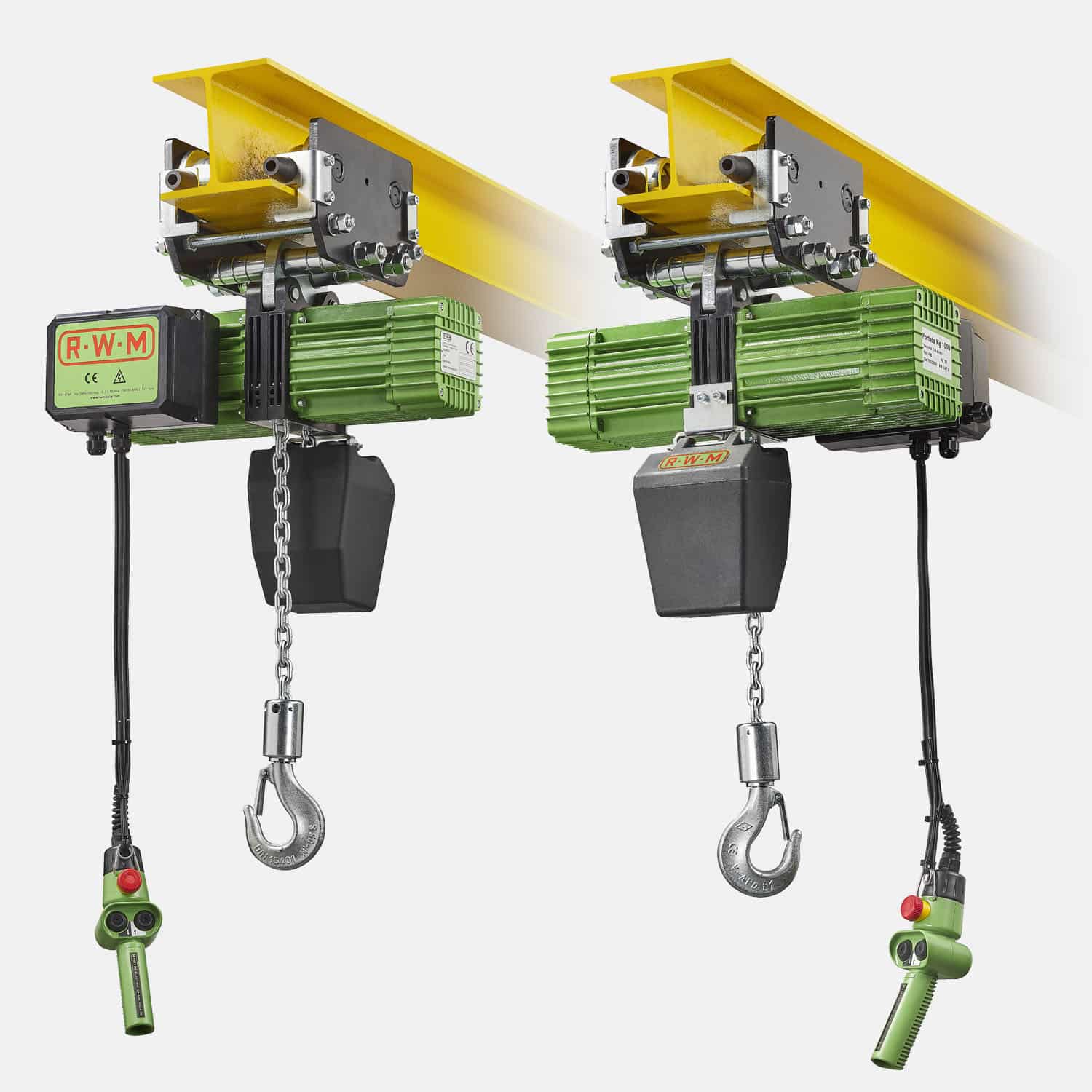

Paranco Serie WF Configurazione carrello a spinta

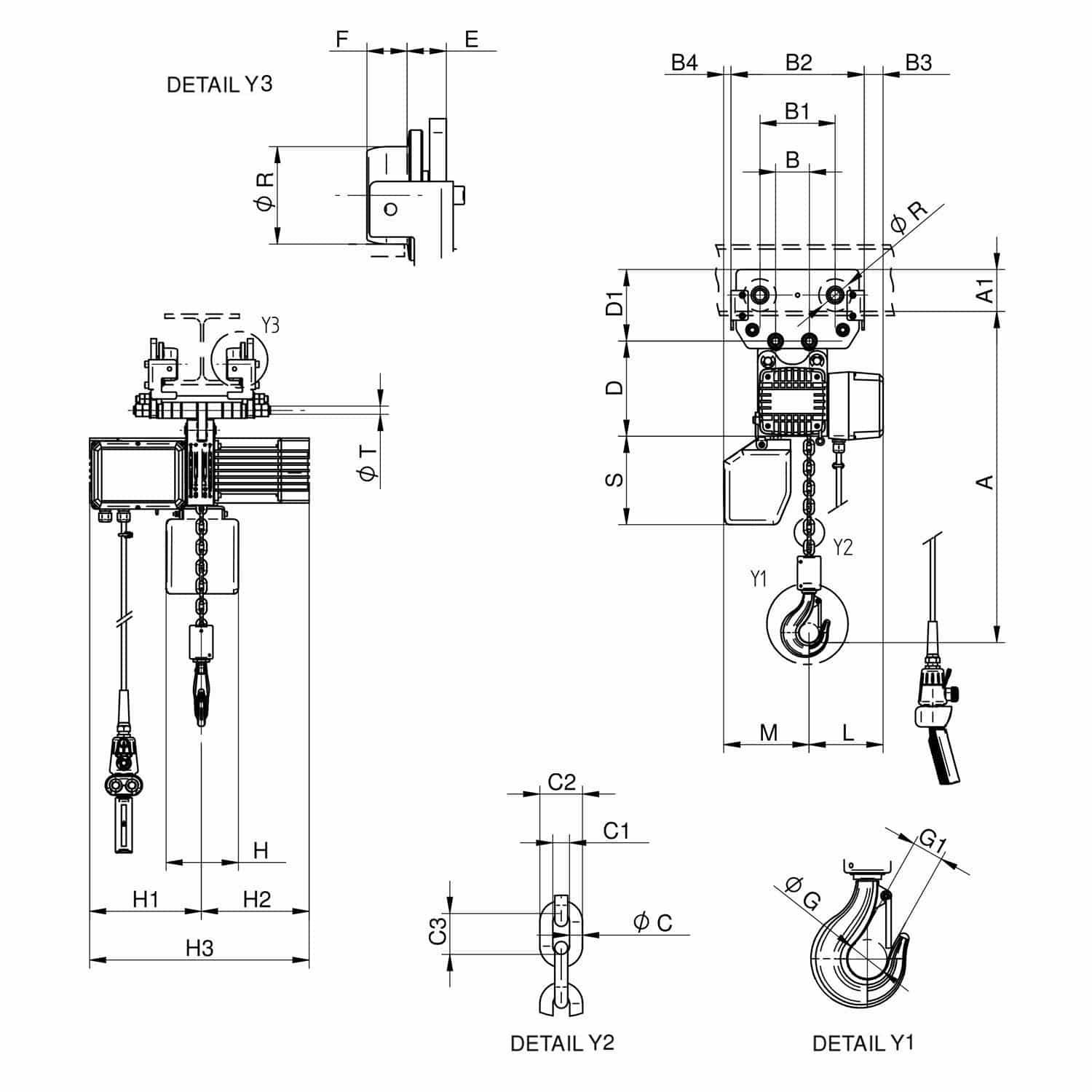

W1000 CS draw

This type of configuration is used when there is the need to lift a load and move it laterally, changing the starting position. In this case the translation is free, manually pushed by the operator.

The capacity ranges from 125 to 1000 kg with a single pull of chain.
from 125 to 1000 Kg

Technical specifications and dimensions

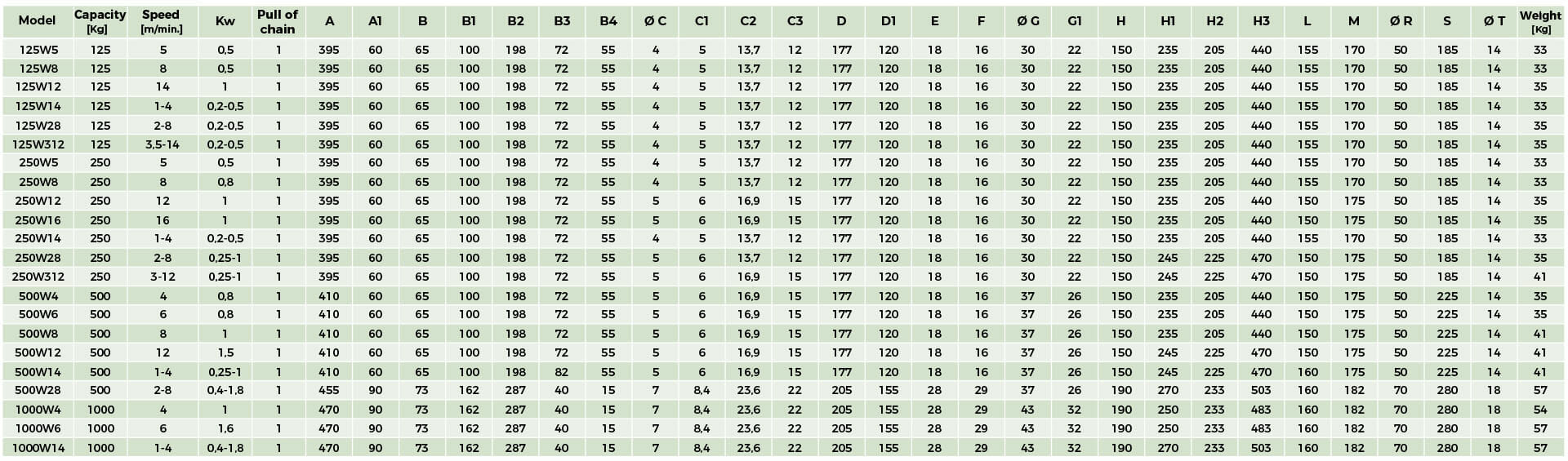

Technical Specifications W-CS serie
