Portfolios - W-F fixed configuration

Portfolio Description

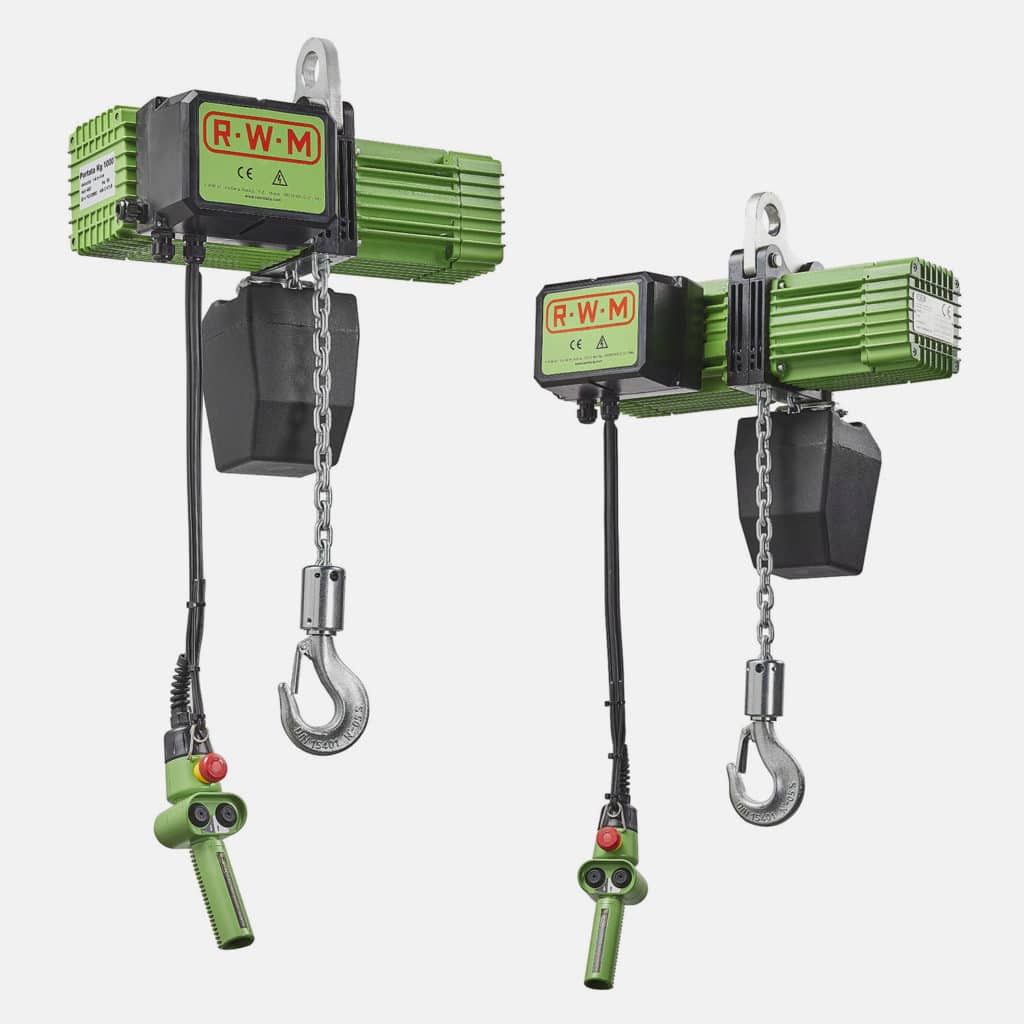

W-F fixed configuration

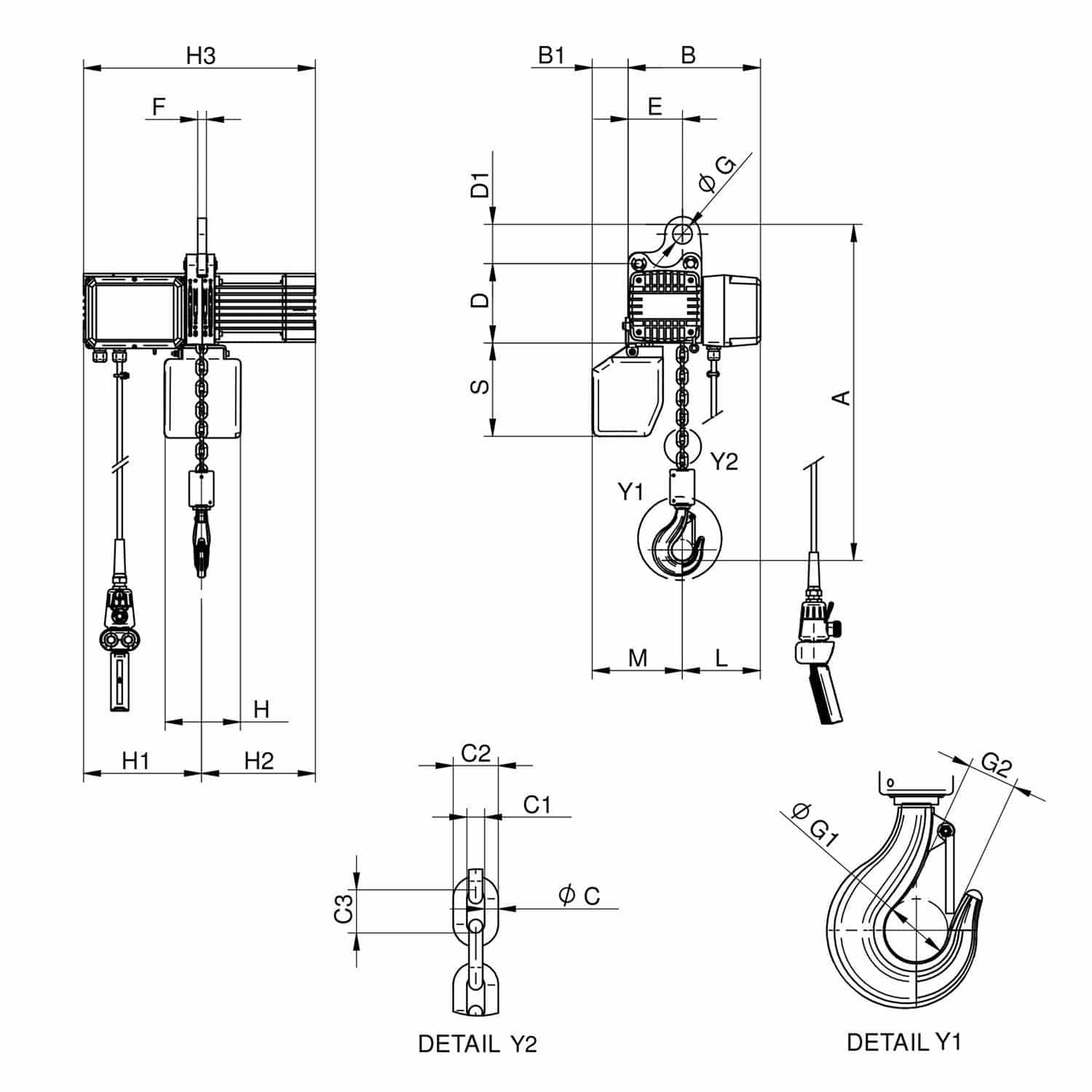

W1000 F draw EN

This type of static configuration is used when there is only the need to lift a load without changing its starting position, or by installing it on a channel structure (already including a push trolley).

The capacity ranges from 125 to 1000 kg with a single pull of chain.
from 125 to 1000 Kg

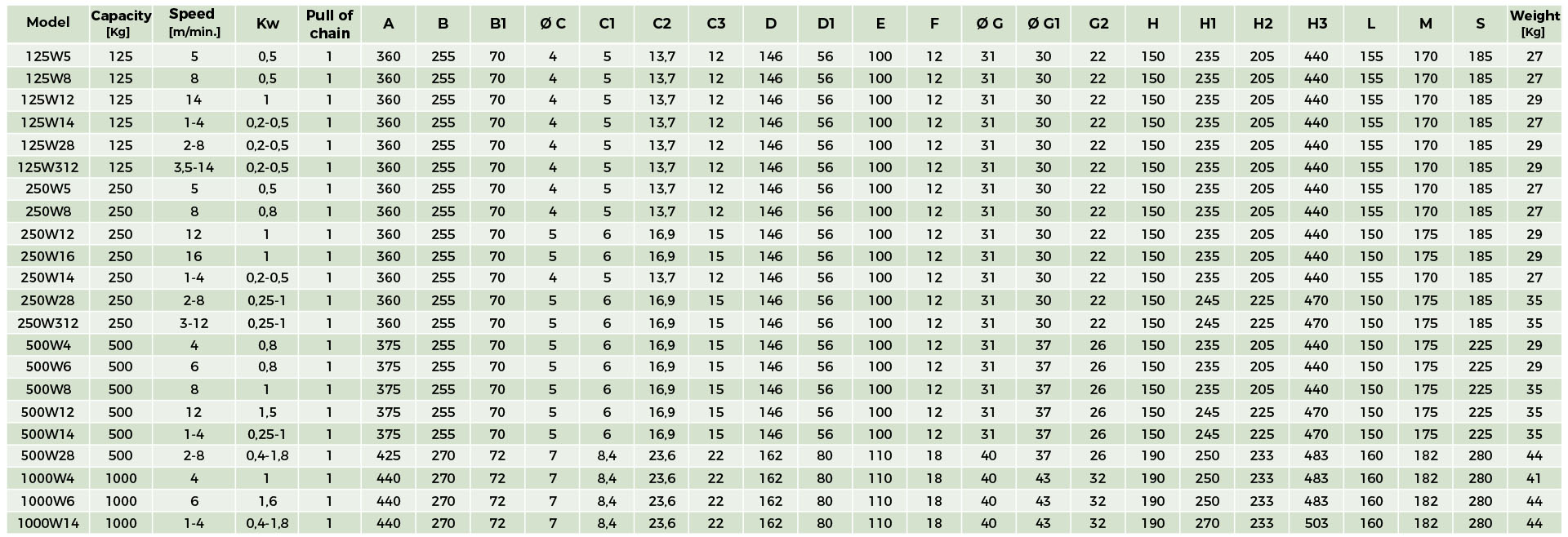

Technical specifications and dimensions

Specifiche tecniche serie WF - EN
