Paranco Serie WR CS Configurazione carrello a spinta

WR-CS push trolley configuration

This type of configuration is used when there is the need to lift a load and move it laterally, changing the starting position. In this case the translation is free, manually pushed by the operator.

The capacity ranges from 1000 to 5000 kg with a single pull of chain.
from 1000 to 5000 Kg

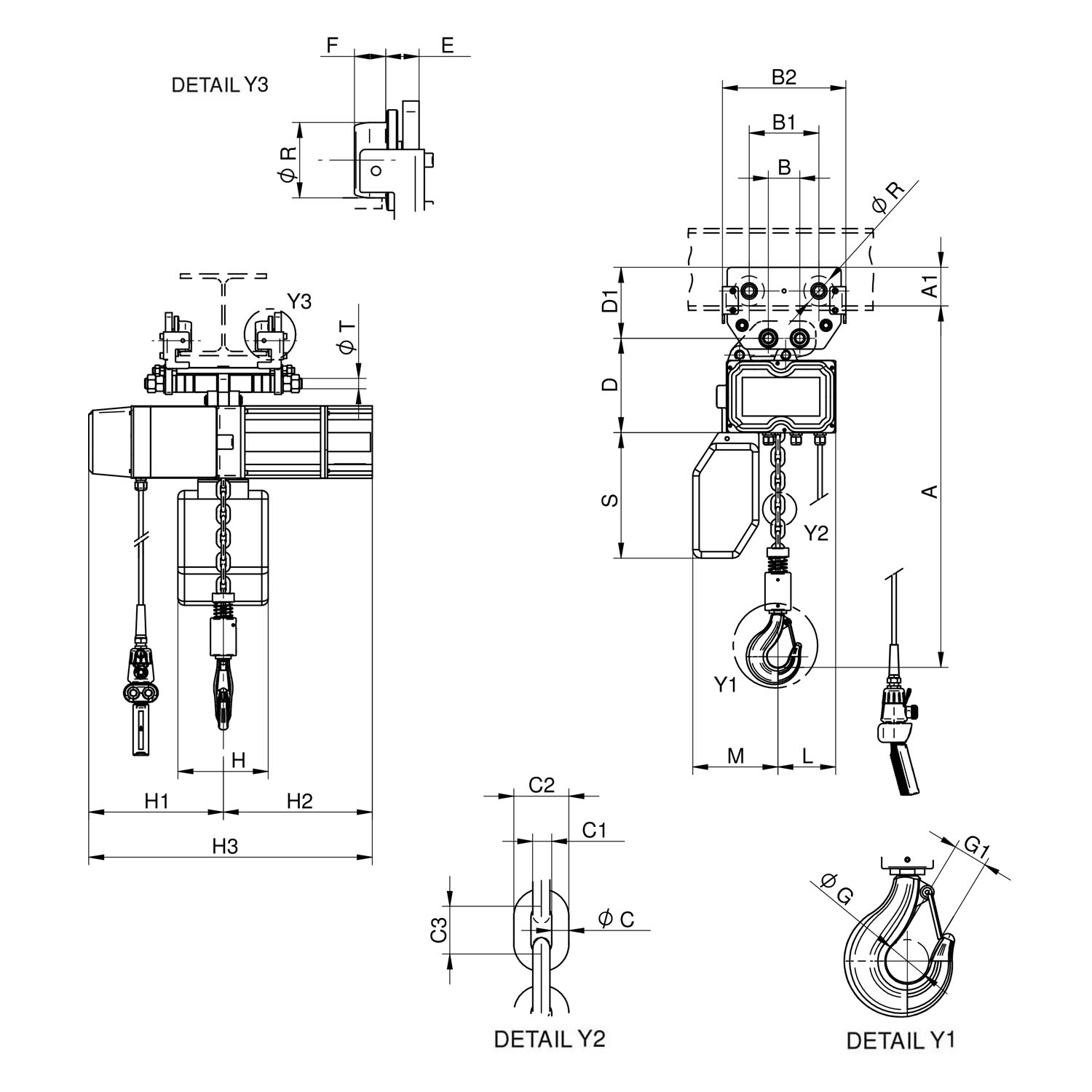

WR2000 CS draw

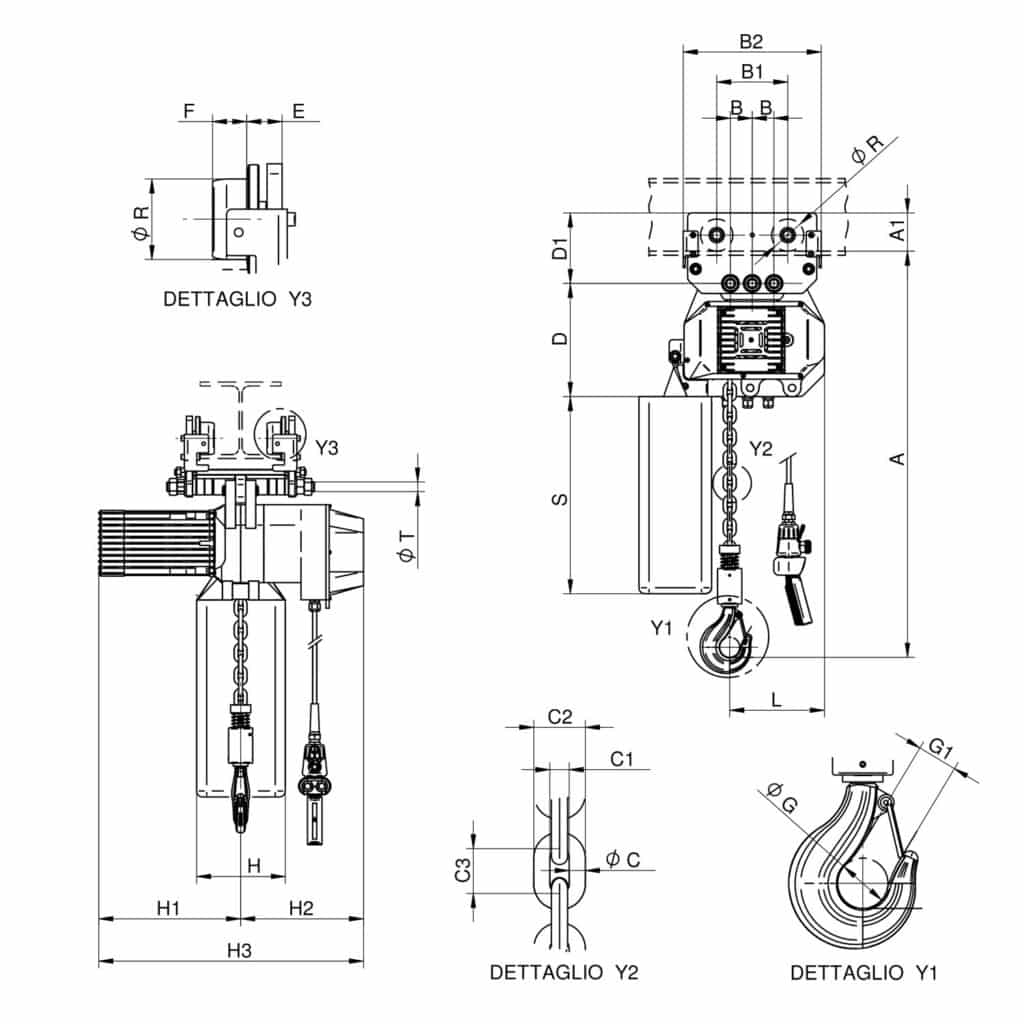

WR3000 T1 CS disegno

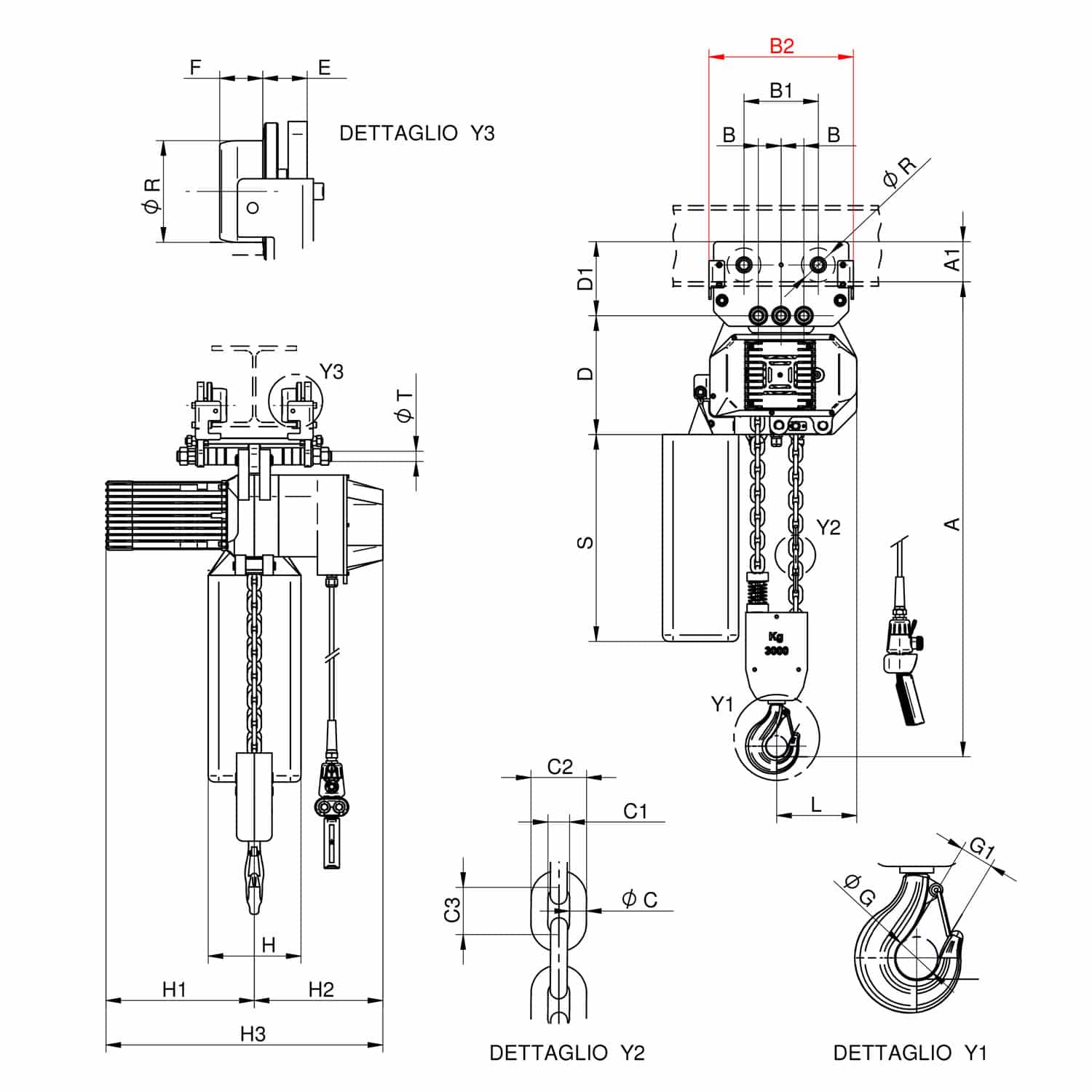

WR3000 T2 CS disegno 1

Technical specifications and dimensions

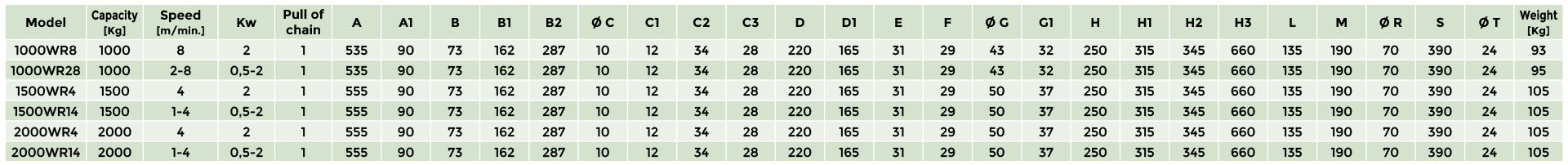

Technical Specifications WR 2000 CS
Technical Specifications 3000 CS 1 1

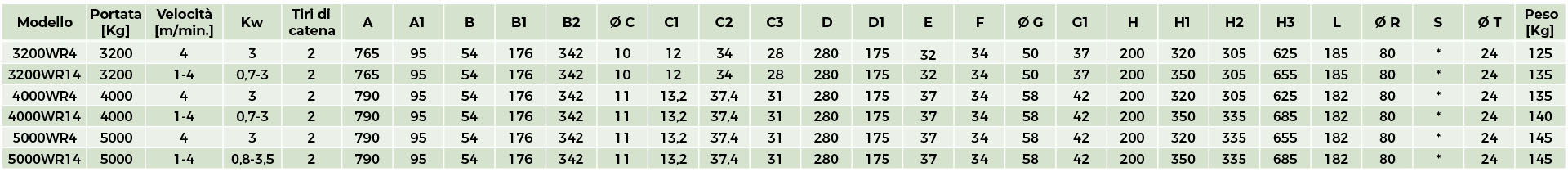

Technical Specifications 3000 CS 2 1
